Product Details:
|
| Features: | This Unit Is Used To Invert PCBs(180 O) For "double-sided" Process | Application: | Double-sided PCB Flipper/Inverter Conveyor |
|---|---|---|---|
| Description: | SMT PCB Inverter / PCB Flipper Conveyor | Brand: | INFITEK |
| Model: | BI-350W-TN | Warranty: | 1 Year Warranty |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| Highlight: | PCB Flipper Retractable Motor,180 Degree PCB Flipper,PCB Inverter 445*35mm |
||
SMT Production Line PCB Inverter for 50*50mm up to 445*35mm PCB size | INFITEK Board Handling Equipment

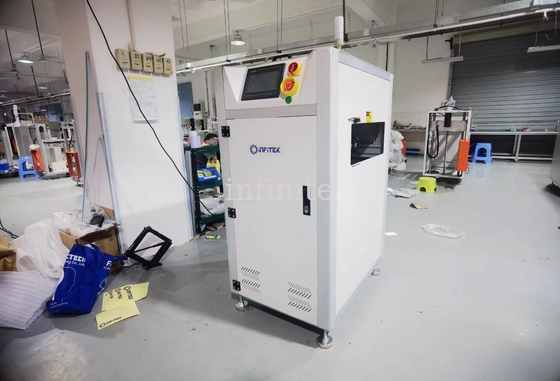

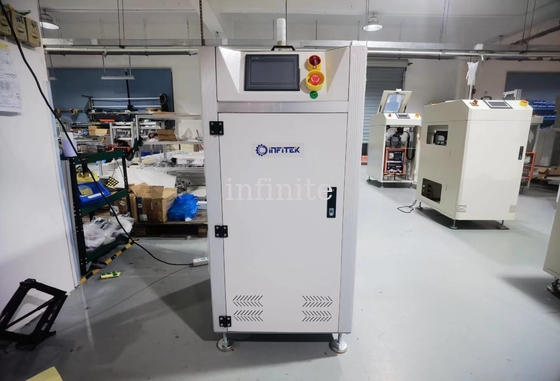

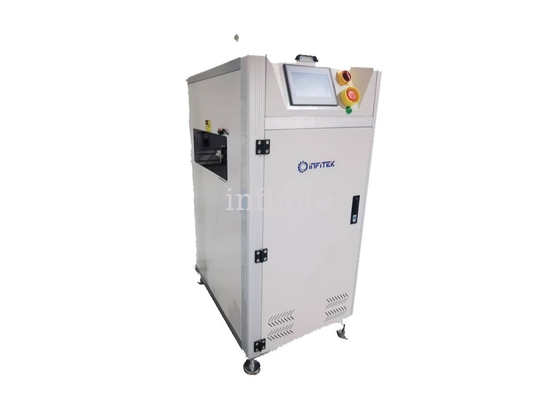

INFITEK SMT PCB Inverter / PCB Flipper Conveyor is designed to invert (flip) boards and feed them into the production line from an integral flat-belt-type conveyor. INFITEK SMT PCB Inverter / PCB Flipper Conveyor module is designed to invert (flip) boards and feed them into the production line from an integral flat-belt-type conveyor. This SMT conveyor system is designed with an easy-to-use “soft-touch” LED control membrane control panel. INFITEK SMT PCB Inverter / PCB Flipper Conveyor has steady and precise lifting (retractable motor) and an easy PCB rail width adjustment lead screw. With enclosed design with a turn limiter that ensures the highest level of safety. INFITEK PCB Inverter/Flipper is available in different sizes and can be customized upon request
PCB INVERTER / PCB Fliffer Conveyor
Model: BI-350W-TN
Applicable PCB sizes: 50*50-445*350 (mm)
Machine Dimensions: 500*725*1250 (mm)
Machine Weight: Approx. 120 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used to invert PCBs(180 degrees) for the "double-sided" process |
| Cycle time | Approx.10 seconds |
| Belt type | oblate belt |
| Power supply | AC1P110V/220V |
| Power | Max 150VA |
| Air pressure | 4-6bar, 1.1ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model |
Dimension (L*W*H MM) |
PCB size (MM) | Weight (KG) |
| BI-350W-TN | 500*725*1250 | 50*50-445*350 | 120 |
| BI-460W-TN | 600*856*1250 | 50*50-550*460 | 160 |
