Product Details:
|
| Features: | High Precision Slide Rail Solder Paste Printing | Application: | Semi-Automatic Solder Paste Printer |
|---|---|---|---|
| Machine Name: | Semi Automatic Solder Paste Printer - 320*1250mm | Brand: | INFITEK |
| Model: | OB-P618C | PCB Size: | 320*1250 (mm) |
| Condition: | Brand New | Functionality: | Industrial Use - SMT Line |
| Packaging: | Wooden Box/Crate | Payment Terms: | 20% Deposit - 80% Before Delivery |
| Warranty: | 1 Year | Reliability: | Design For Industrial Use |
| Highlight: | 320*1250mm Solder Paste Screen Printing Machine,Solder Paste Screen Printing Machine,Solder Paste Stencil Printer Semi Automatic |
||

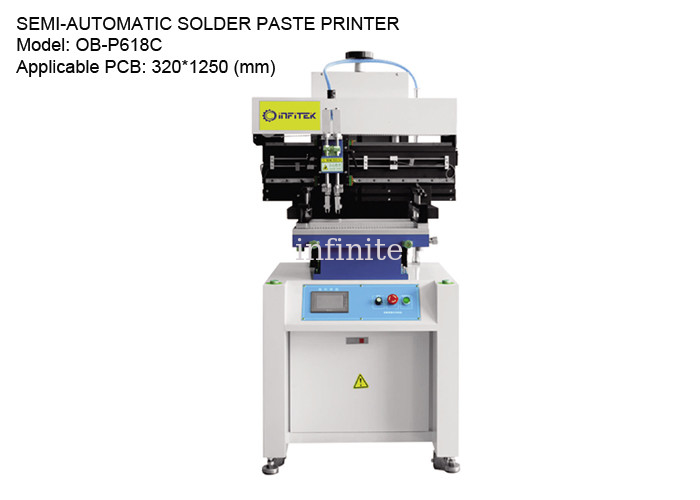

Semi-Automatic Solder Paste Printer for 320mm*1250mm PCB Size | INFITEK SMT Solutions
INFITEK OB-P618C Solder Paste Printer is a Semi-Automatic Solder Paste Printing Machine used in PCB printing in SMT production. This Semi-Auto Solder Paste Printer is highly-precise and uses the slide rail printing method. This Solder Paste Printing Machine has a Magnetic thimble + honeycomb board platform design, making it more suitable for double sides PCB. The INFITEK OB-P618C Solder Paste Printer is designed for 320*1250mm PCB size and uses a Stencil of 650*1300mm.
Machine Name: Semi-Automatic Solder Paste Printer
Model: OB-P618C
PCB Size: 320*1250 (mm)
Stencil Size: 650*1300 (mm)
PCB Thickness: 0-100 (mm)
Features:
| TECHNICAL PARAMETERS | |
| Description | Solder paste printing for PCB board |
| Power supply | 1PAC220V50/60HZ |
| Positioning mode | Outside / Reference hole |
| Printing Speed | 0-8000mm/Min |
| SPECIFICATIONS | |
| Model | OB-P618C |
| Dimension (L*W*H) (mm) |
1650*800*1700 |
| Platform size (mm) | 320*1250 |
| PCB size (mm) | 320*1250 |
| Stencil size (mm) | 650*1300 |
| PCB thickness (mm) | 0-100 |
| Platform height (mm) | 880 |
| Repeatability | (+/-) 0.01mm |
| Weight (KG) | Approx.380 |
