Product Details:
|
| Features: | This SMT Lifting Gate Conveyor Is Necessary For Channel Production Line | Application: | Lifting Type Gate Conveyor For SMT Production Line |
|---|---|---|---|
| Description: | Lift Gate Conveyor | PCB Size: | 50*50-530*460 (mm) |
| Brand: | INFITEK | Model: | GC-460W-N |
| Warranty: | 1 Year Warranty | Reliability: | For Industrial Use |
| Packaging: | Wooden Box / Crate | ||
| Highlight: | Lift Gate Conveyor SMEMA,Lift Gate Conveyor Safety Sensor,SMT Line Conveyor |
||

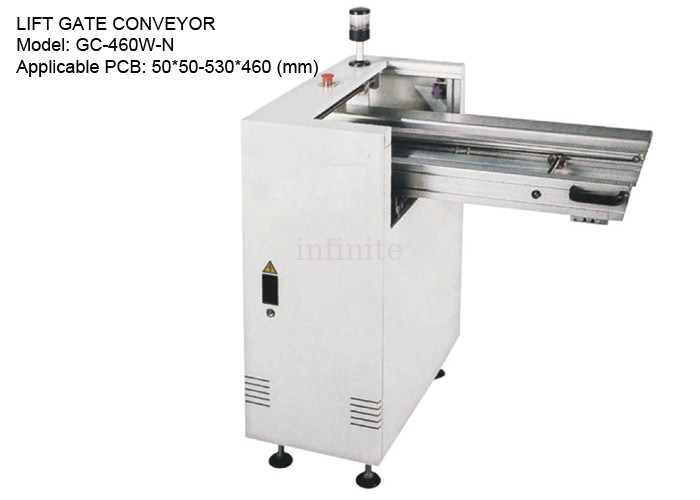

SMT Line Lift Gate Conveyor for 50*50-530*460mm size PCB | INFITEK Board Handling Equipment
INFITEK GC-460W-N is a Lifting Type SMT Conveyor used as a gate in the SMT production line. This is a necessary board handling equipment for channeling SMT Assembly Line to facilitate the passage between SMT Lines and ensure the safety of passersby. INFITEK GC-460W-N Lift Conveyor is designed for SMT Production Line that uses PCBs with sizes from 50*50mm to 530*460mm. This SMT Lift Conveyor uses a Cylinder to keep the gate safe and has a Pneumatic lock installed to enhance safety.
Machine Name: LIFT GATE CONVEYOR
Model: GC-460W-N
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 1000*860*1050 (mm)
Machine Weight: Approx. 200 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is necessary for the channeled production line |
| Belt type | oblate belt |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Air pressure | 4-6bar, 48ltr/min max |
| Transport height | 900±20mm(0r customized |
| Transport direction | From left to right or right to left |
