Product Details:
|
| Features: | Durability And Long Service Life | Application: | PCB Vacuum Type Loader For SMT Production Line Use |
|---|---|---|---|
| Description: | PCB Vacuum Loader | Applicable PCB Size: | 50*50-530*460 Mm |
| Model: | LV-460W-TN | Brand: | INFITEK |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Crate/box | ||
| High Light: | SMEMA PCB Vacuum Loader,PCB Vacuum Loader 530*460mm |
||
PCB Vacuum Loader for SMT Production Line - 50*50-530*460mm PCB Loader | INFITEK Board Handling Equipment
INFITEK LV-460W-TN PCB Vacuum Loader is a vacuum-type PCB loading machine whose function is to transfer bare board PCB to the next process. This is the first process on the board handling in the SMT Production Line. The Vacuum Type PCB loader manufactured by INFITEK is durable, of high quality, and designed to provide smooth and safe operation. The INFITEK LV-460W-TN PCB Vacuum Loading Machine is designed for use with PCBs ranging in size from 50*50mm to 530*460mm.

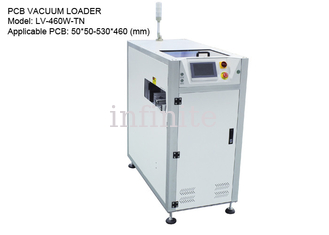

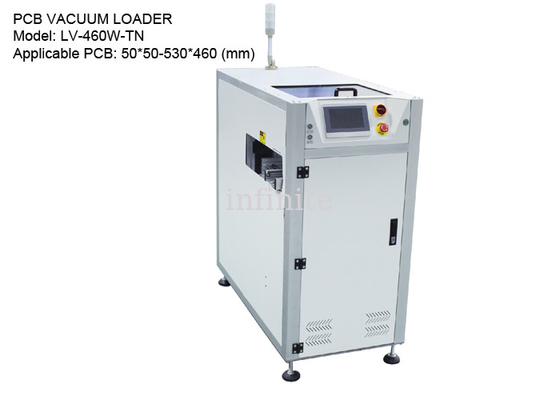

Machine Name: PCB VACUUM LOADER
Model: LV-460W-TN
Applicable PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 800*1270*1300 (mm)
Est. Machine Weight: Approx. 150 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for automatic loading operation into the transceiver board |
| Cycle time | Approx. 12seconds or specify |
| Power supply | AC1P110V/220V |
| Power | 150V max |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
