Adjustable Speed PCB Separator 900mm Max Cutting Length

PCB Separator with adjustable cutting speed - Max cutting length 900mm | INFITEK SMT Solutions

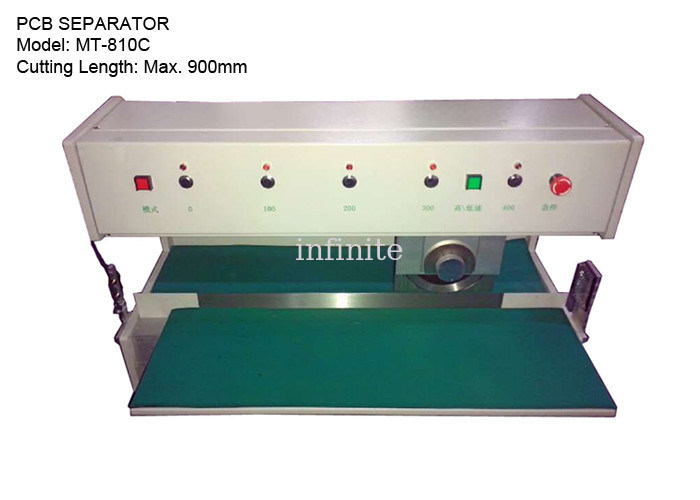

The INFITEK MT-810C PCB Separator is a 900mm max cutting length V-cut machine used for PCB cutting. This model has the capacity to cut up to 900mm cutting length. The use of a PCB V-cut machine helps the efficiency of cutting the PCB and is an effective way to avoid damaging the components. The INFITEK MT-810C PCB V-Cut Machine has an adjustable separation speed and an adjustable operation platform.

PCB SEPARATOR

Model: MT-810C

Max Cutting Length: 900mm

Power: 110/220V 50/60HZ, 250w

Features:

1. Adjustable separating speed: 500mm/s or 300mm/s
2. Minimum Cutting length: 400mm (MT-810A), Maximum cutting length: 1300mm (MT-810D) Upper circular blade adjustable up to 0-2mm.
3. Adjustable operation platform from 0-50mm.
4. Cutting thickness: 1.0-3.2mm, V-cut thickness: 0.2-2.0mm
5. The machine can cut PCB boards without damaging electronic components.
6. Improves cutting efficiency.
7. With the blade moving, it can reduce pressure on the board to avoid solder joint crack and parts fracture.
8. The upper circular blade cuts against the lower linear blade to separate the PCB board, with smooth and clear cuts.
9. Set fixed start and end points for blade moving according to the length of PCB.
10. According to the width of the PCB, the back baffle can be adjustable from 0 to 150mm.
11. The blades are sharp and durable. And they can be sharpened between 2 to 3 times.
12. Assemble the light curtain system on the end of the lower blade for your option. If there is anything beyond the safe line, the PCB separator will stop, which provides safety protection.

How To choose your PCB Separator Machine.
