Product Details:
|
| Application: | Dust Protection Conveyor For SMT Production Line Use | Description: | Link Conveyor With Dust Cover |
|---|---|---|---|
| Brand: | INFITEK | Model: | Link Conveyor With Dust Cover - 350mm Adjustable |
| Rail Width: | Adjustable Rail Width Up To 350mm | Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use Design |
| Packaging: | Wooden Box/Crate | ||
| High Light: | 1.2m SMT Conveyor,1.5m SMT Conveyor,SMT Placement Equipment |
||

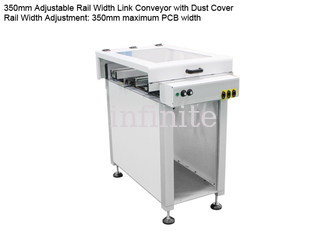

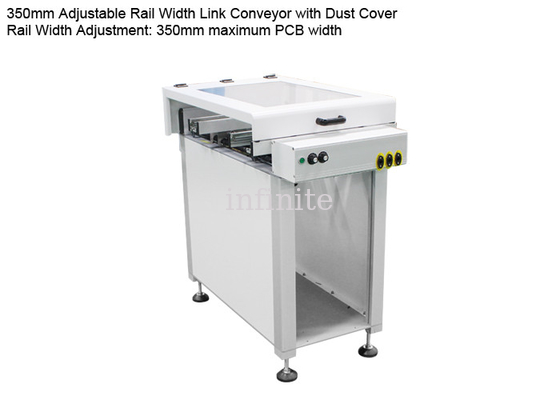

350mm Adjustable Rail Width Link Conveyor with Dust Cover | INFITEK Board Handling Equipment
The 350mm Adjustable Rail Width Link Conveyor with Dust Cover is a type of SMT conveyor designed with a dust cover to provide protection to the surface of the PCB that will be exposed to foreign materials such as dust that may affect the quality of solderability after the reflow oven process. INFITEK 350mm Adjustable Rail Width Link Conveyor with Dust Cover is designed for 350mm max width PCB size. It is also available in different lengths, and can also be made into a special size depending on the customer's needs.
Link Conveyor with Dust Cover
PCB Width: 350mm Max Width
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
