MT-3000B XYZ Axis Control PCB Separator Machine 350*420mm Cutting Table Area

MT-3000B PCB Separator with XYZ Axis Control - 350*420mm Cutting Table Area | INFITEK SMT Solutions

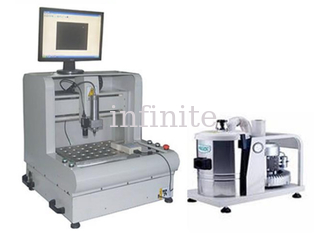

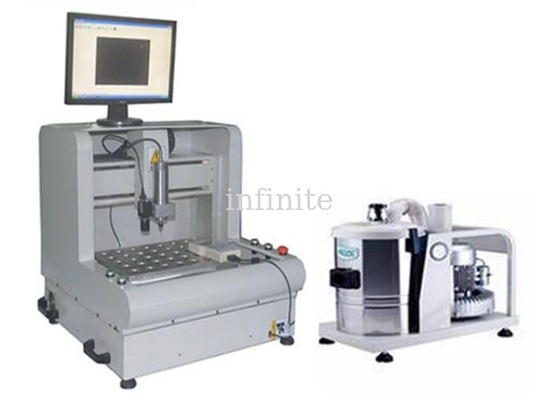

The INFITEK MT-3000B PCB Separator is an efficient PCB cutting machine that can cut straight lines, arcs, and circles. This PCB Separator machine is a great help to product quality can be improved because the cutting stress is minimal. The MT-3000B has features to prevent damage to chips and other components in the cutting process. This machine is also capable of achieving multiple cutting lines; can cut a straight line, arc, and circle. This design will greatly reduce constraints on PCB. Cutting precision can reach ±0.01mm, to meet a variety of cutting needs.

PCB SEPARATOR
Model: MT-3000B
PCB Table Size: 350*420mm
XYZ Axis Reachable Stroke: 400*450*80mm
Power: 2P AC220V/1.8KW (including dust collector)

Features:

• Improve product quality, cutting stress is minimal; prevent damage to chips and other components in the cutting process.
• Multiple cutting lines; can cut a straight line, arc, and circle. This design will greatly reduce constraints on PCB.
• Configure hand-held guidance; program editing can be taught manually or G Code Import, with import and export, board array copy, edit, and modify function. Accurate and simplified programming time and precision.
• The configuration of a strong dust filter dust collector under the vacuum method can be clean to solve the problem of cutting dust.
• Cutting precision: high-precision can reach ±0.01mm, to meet a variety of cutting needs.
